性能特点:Functional characteristics:

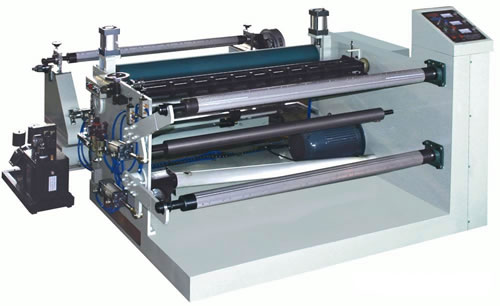

This machine is slitting equipment of high precision and high sensitivity,with inflatable bearing id used for feeding and receiving materials.imported magnetic powder clutch is adopted to control the tension.Imported magnetic powder clutch is adopted to control the tension.Imported gas sensitive device is adopted to detect the rectification of rolling,with fully automatic hydraulic rectification control.Automatic detection,rectification and metering can be realized.It is characterized ba accurate slitting,fast slitting speed,ease of operation and maintenance,etc.There are two selectiong for main engine,single electric motor,double electric motors.
注:纠偏系统可分为气压纠偏和光电纠偏
用途:Purose:
It is applicable for the slitting tooling of industrial adhesive tape,cellophanetape,protective film,copper foil,aluminum foil,OPP,PE,PVC,sheet,cloth,ect.This machine is widely used in the industries such as printing,packing,electronics,leather,clothes making,plastic,ect.
主要技术参数Main Technical Parameters:
型号 |
Model |
1300分切机 |
1600分切机 |
最大进料宽度 |
Max Feeding Width |
1300 |
1600 |
主机功率 |
Main Engineer Power |
6KW双电机 |
6KW双电机 |
速度 |
Speed |
120M/分钟 |
120M/分钟 |
外型尺寸 |
Size |
2400*2000*1300 |
2400*2300*1300 |
重量 |
Weight |
1200kg |
1500kg |
放料直径 |
Rewinding Diameter |
800mm |
800mm |
收卷直径 |
Winding Diameter |
450mm |
450mm |
精度 |
Precision |
±0.1mm |
±0.1mm |
电源 |
Power |
380V 50HZ |
380V 50HZ |
