XR-320A-type cutting machine

详细介绍


MQ-320 A 型自动模切机

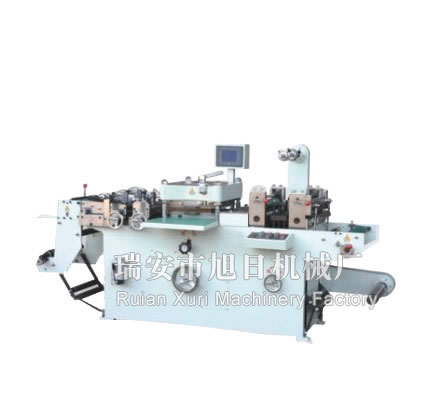

MQ-320 A Automatic Die-cutting Machine
伺服传动，人机界面操控
Servo drive，man-machine interface control
扩充功能：复膜、烫金、冲孔
Extended functions：filming,gold blocking,punching
标准功能：放料——模切——排废——切片——收卷
Standard functions:feeding—die—cutting—waste draining—slitting—rolling
性能特点Functional characteristics:
该机为平压平结构，电脑伺服系统拉纸，材料两边及纵向由光电眼跟踪定位。
放料——模切——排废——切片或收卷，有电脑全程控制一次完成。
This machine is of platen pressing structure,computer servo system sheet drawing,and
The two edges and vertical sides of the materials are tracked and located by the photoelectric
eye.Feeding_waste draining_slitting or rilling,all of them are completed by the compute control
by one turn.
适用范围Scope applicable:
纸张不干胶商标、条纶薄膜商标，及镭身防伪商标的模切，该机是全轮转高速卷筒商标印刷机、柔性版印刷机、连续丝印机、凹版印刷机及防伪商标模压机的最佳配套设备，也是各商标印刷厂最理想的机型。还适用于电子行业、胶黏带制品行业模切成型。
The die-cutting of sheet self-adhesive trademark,terylene film trademark,and the radium anti-fake trademark.This machine is the optimal assembled equipment for full cycle high-speed wed treademark printing machine,flexible edition printing machine,continuous screen printing machine,flexible edition printing machine,continuous screen printing machine,gravure printing machine and anti-fake trademake printing plants.It is also applicable to the die_cutting and forming of the electronic industry,and tape goods production industry.
主要技术参数Main Technical Parameters:
型号
Model
320A型模切机
最大进料宽度
Max Feding Width
320
模切面积
Cutting Area
300×300
模切速度（T/M）
Cutting Speed
10-170
定位精度
Positioning Accuracy
±0.10
主机功率
Main Engineer Power
2.2KW
外型尺寸（mm）
Size (mm)
2750×1250×1400
放料直径
Rewinding Diameter
500
电压
Voltage
220V
