XR-320A-type cutting machine

详细介绍

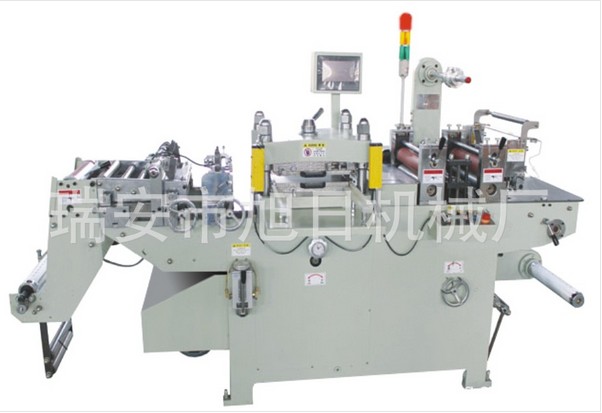

MQ-320 A 型自动模切机
MQ-320 A Automatic Die-cutting Machine
伺服传动，人机界面操控
Servo drive，man-machine interface control
扩充功能：复膜、烫金、冲孔
Extended functions：filming,gold blocking,punching
标Standard functions:feeding—die—cutting—waste draining—slitting—rolling
性能特点Functional characteristics:
This machine is of platen pressing structure,computer servo system sheet drawing,and
The two edges and vertical sides of the materials are tracked and located by the photoelectric
eye.Feeding_waste draining_slitting or rilling,all of them are completed by the compute control
by one turn.
适用范围Scope applicable:
The die-cutting of sheet self-adhesive trademark,terylene film trademark,and the radium anti-fake trademark.This machine is the optimal assembled equipment for full cycle high-speed wed treademark printing machine,flexible edition printing machine,continuous screen printing machine,flexible edition printing machine,continuous screen printing machine,gravure printing machine and anti-fake trademake printing plants.It is also applicable to the die_cutting and forming of the electronic industry,and tape goods production industry.
主要技术参数Main Technical Parameters:
型号
Model
320A型模切机
最大进料宽度
Max Feding Width
320
模切面积
Cutting Area
300×300
模切速度（T/M）
Cutting Speed
10-170
定位精度
Positioning Accuracy
±0.10
主机功率
Main Engineer Power
2.2KW
外型尺寸（mm）
Size (mm)
2750×1250×1400
放料直径
Rewinding Diameter
500
电压
Voltage
220V
